Product Summary
The ADuM41601 is a USB port isolator, based on Analog Devices, Inc., iCoupler? technology. Combining high speed CMOS and
monolithic air core transformer technology, these isolation components provide outstanding performance characteristics and
are easily integrated with low and full speed USB-compatible peripheral devices.
Parametrics
USB 2.0 compatible
Low and full speed data rate: 1.5 Mbps and 12 Mbps
Bidirectional communication
4.5 V to 5.5 V VBUS operation
Features
Upstream short-circuit protection
Class 3A contact ESD performance per ANSI/ESD STM5.1-2007
High temperature operation: 105°C
High common-mode transient immunity: >25 kV/μs
16-lead SOIC wide-body package version
16-lead SOIC wide body enhanced creepage version
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

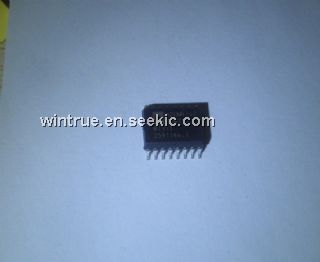

![]() ADUM4160BRWZ |
![]() |
![]() IC USB ISOLATOR FULL/LOW 16SOIC |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||
![]() |
![]() ADUM4160BRWZ-RL |
![]() |
![]() ISOLATOR DGTL 5KVRMS 2CH 16-SOIC |
![]() Data Sheet |
![]()
|
|
