Product Summary

IC MOTOR DRIVER PAR 25HZIP

Parametrics

Standard Package 500
Category Integrated Circuits (ICs)
Family PMIC - Motor and Fan Controllers, Drivers
Series -
Packaging Tube
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Full H-Bridge, (2) Dual
Interface Parallel
Applications General Purpose
Current - Output 3A
Voltage - Supply 4.5 V ~ 5.5 V
Voltage - Load 4.5 V ~ 34 V
Operating Temperature -30°C ~ 85°C
Mounting Type Through Hole
Package / Case 25-SIP, Formed Leads
Supplier Device Package 25-HZIP
Dynamic Catalog Drivers

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

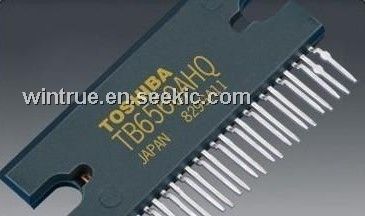

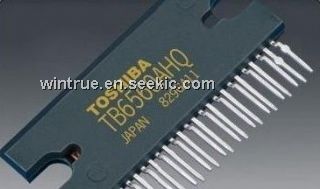

TB6560AHQ(O,8)
TB6560AHQ(O,8)
Toshiba
Motor / Motion / Ignition Controllers & Drivers PWM Choppertype 40V 3.5A 100kOhm
Data Sheet
0-209: $3.02
209-250: $2.54
250-500: $2.39
500-1000: $2.14
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TB6549PG(O)
TB6549PG(O)
Toshiba
Motor / Motion / Ignition Controllers & Drivers 30V PWR Supply 3.5A Full Bridge DRVR PWM
Data Sheet
0-200: $2.00
200-250: $1.68
250-500: $1.24
500-1000: $1.07
TB6549FG(O,EL)
TB6549FG(O,EL)
Toshiba
Motor / Motion / Ignition Controllers & Drivers Bridge Driver 30V 3.5A 4 modes
Data Sheet
0-400: $1.65
400-500: $1.39
500-1000: $1.19
1000-2000: $0.99
TB6549HQ
TB6549HQ
Toshiba
Motor / Motion / Ignition Controllers & Drivers Bridge Driver
Data Sheet
Negotiable
TB6539FG(EL)
TB6539FG(EL)
Toshiba
Motor / Motion / Ignition Controllers & Drivers Brushless DC Motor Controller
Data Sheet
Negotiable
TB6537PGJ
TB6537PGJ
Toshiba
Motor / Motion / Ignition Controllers & Drivers Brushless DC Motor Controller
Data Sheet
Negotiable
TB6549FG(EL)
TB6549FG(EL)
Toshiba
Motor / Motion / Ignition Controllers & Drivers Bridge Driver
Data Sheet
Negotiable
