Product Summary

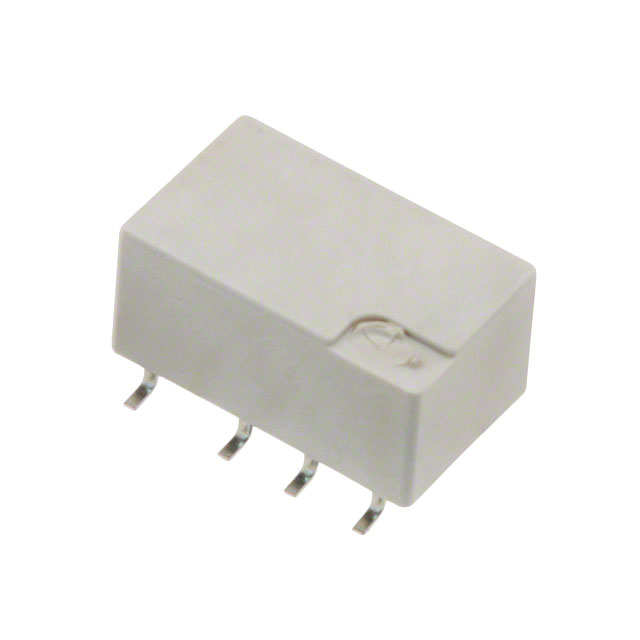

RELAY TELECOM DPDT 2A 5V

Parametrics

Category Relays
Family Signal Relays, Up to 2 Amps
Series IM, AXICOM
Packaging Tube
Relay Type Telecom
Coil Type Non Latching
Coil Current 28mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 3.75 VDC
Turn Off Voltage (Min) 0.5 VDC
Features Sealed - Hermetically
Mounting Type Through Hole
Termination Style PC Pin
Contact Material Palladium (Pd), Ruthenium (Ru), Gold (Au)
Operate Time 3ms
Release Time 3ms
Coil Power 140 mW
Coil Resistance 178 Ohms
Operating Temperature -40°C ~ 85°C

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IM03TS
IM03TS
TE Connectivity / Axicom
High Frequency / RF Relays 5VDC Non-latching Single coil
Data Sheet
0-1: $1.32
1-10: $1.24
10-25: $1.14
25-50: $1.08
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IM03CGR
IM03CGR
TE Connectivity / Axicom
High Frequency / RF Relays 140mW 5V DIELEC.
Data Sheet
0-1535: $1.21
IM03DGR
IM03DGR
TE Connectivity / Axicom
High Frequency / RF Relays IM RELAY 140mW 5V
Data Sheet
0-1: $1.64
1-25: $1.46
25-50: $1.35
50-100: $1.13
IM03GR
IM03GR
TE Connectivity / Axicom
High Frequency / RF Relays 5VDC Non-latching Single coil gullwing
Data Sheet
0-1: $1.69
1-10: $1.56
10-25: $1.46
25-50: $1.33
IM03JR
IM03JR
TE Connectivity / Axicom
High Frequency / RF Relays 140 mW 5 V 10
Data Sheet
0-1: $1.69
1-10: $1.56
10-25: $1.46
25-50: $1.33
IM03NS
IM03NS
TE Connectivity / Axicom
High Frequency / RF Relays 140 MW 5 V 11
Data Sheet
0-1580: $0.91
IM03TS
IM03TS
TE Connectivity / Axicom
High Frequency / RF Relays 5VDC Non-latching Single coil
Data Sheet
0-1: $1.32
1-10: $1.24
10-25: $1.14
25-50: $1.08
