Product Summary

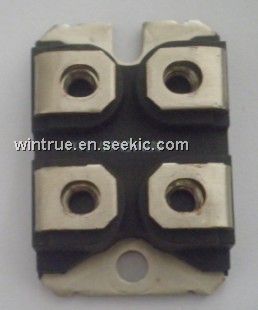

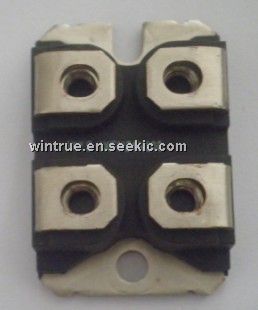

MOSFET N-CH 1KV 24A SOT-227B
Parametrics
| Standard Package | 10 |
|---|---|
| Category | Semiconductor Modules |
| Family | FETs |
| Series | HiPerFET? |
| Packaging | Tube |
| FET Type | MOSFET N-Channel, Metal Oxide |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 1000V (1kV) |
| Current - Continuous Drain (Id) @ 25° C | 24A |
| Rds On (Max) @ Id, Vgs | 390 mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 8mA |
| Gate Charge (Qg) @ Vgs | 267nC @ 10V |
| Input Capacitance (Ciss) @ Vds | 8700pF @ 25V |
| Power - Max | 568W |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B |
| Dynamic Catalog | IXFN HiPerFET? MOSFET Series |
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IXFN24N100 |
Ixys |
MOSFET 1KV 24A |
Data Sheet |
Negotiable |
|
||||
 |
IXFN24N100F |
Ixys |
MOSFET |
Data Sheet |
Negotiable |
|
||||
