Product Summary

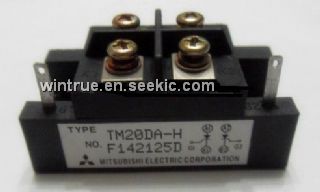

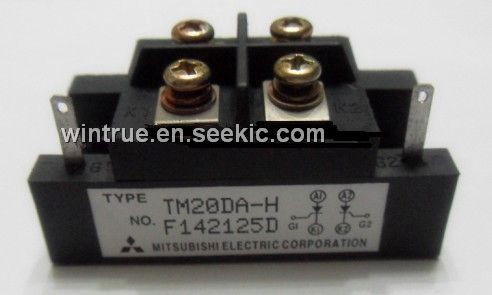

The TM20DA-H is a thyristor module. The applications of it are DC motor control, NC equipment, AC otor control, Contactless switches, lectric furnace temperature control, Light dimmers.



Parametrics

TM20DA-H absolute maximum ratings: (1)Repetitive peak reverse voltage:800V; (2)Non-repetitive peak reverse voltage:960V; (3)DC reverse voltage:640V; (4)Repetitive peak off-state voltage:800V; (5)Non-repetitive peak off-state voltage:960V; (6)DC off-state voltage:640V; (7)RMS on-state current:30A; (8)Average on-state current:20A; (9)Surge (non-repetitive) on-state current:400A; (10)I2t for fusing:6.7*102 A2S; (11)Critical rate of rise of on-state current:100A/μs; (12)Peak gate power dissipation:5.0W; (13)Average gate power dissipation:0.5W; (14)Peak gate forward voltage:10V; (15)Peak gate reverse voltage:5.0V; (16)Peak gate forward current:2.0A; (17)Junction temperature:-40℃ to +125℃; (18)Storage temperature:-40℃ to +125℃; (19)Isolation voltage:2500V; (20)Weight:80g.

Features

TM20DA-H features: (1)IT (AV) Average on-state current:20A; (2)VRRM Repetitive peak reverse voltage:800V; (3)VDRM Repetitive peak off-state voltage:800V; (4)DOUBLE ARMS; (5)Insulated Type; (6)UL Recognized:Yellow Card No. E80276,File No. E80271.
