Product Summary

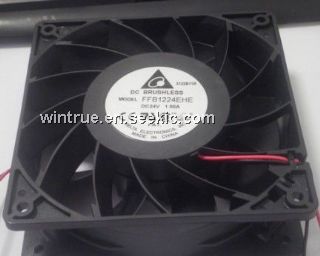

FAN DC AXIAL 24V 120X38 4000RPM
Parametrics
| RoHS Information |
DC Fans RoHS Cert of Compliance |
|---|---|
| Standard Package | 36 |
| Category | Fans, Thermal Management |
| Family | DC Fans |
| Series | FFB |
| Fan Type | Tubeaxial |
| Size / Dimension | Square - 120mm L x 120mm H x 38mm W |
| Voltage - Rated | 24VDC |
| Power (Watts) | 24.0W |
| Features | - |
| RPM | 4000 RPM |
| Noise | 59 dB(A) |
| Static Pressure | 0.700 in H2O (174.4 Pa) |
| Air Flow | 190.0 CFM (5.38m3/min) |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Operating Temperature | - |
| Weight | 0.816 lb (370.13g) |
| Current Rating | 1A |
| Voltage Range | 14 ~ 26.4VDC |
| Life Expectancy | - |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
| Dynamic Catalog | FFB Series |
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FFB1224EHE |
|
FAN DC AXIAL 24V 120X38 4000RPM |
Data Sheet |
|
|
||||||||||||||||||||
 |
FFB1224EHE-F00 |
|
FAN DC AXIAL 24V 120X38 4000RPM |
Data Sheet |
|
|
||||||||||||||||||||
