Product Summary
1. High capacity PhotoMOS Relay in a compact and slim 4-pin SIL
2. Extremely low ON resistance
3. Control low-level signal Pow er Photo MOS relays feature extremely low closed-circuit offset voltage
to enable control of low-level analog signals without distortion.
4. Low-level off state leakage current
5. High I/O isolation voltage 2,500 V
6. Eliminates the need for a counter electromotive protection diode in thedrive circuit on the input side
7. Eliminate the need for a power supply to drive the power MOSFET
8. PC board layout is simplified
9. No restriction on mounting direction
10. Varistor incorporated type is alsoavailable.
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

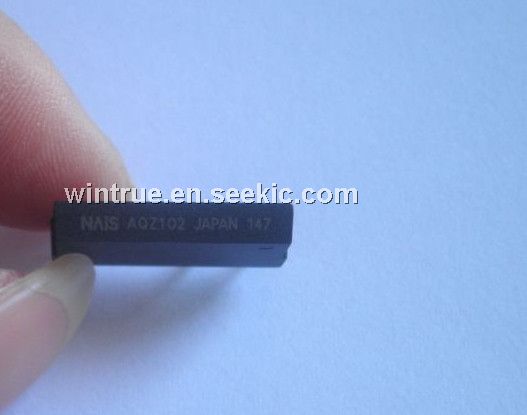

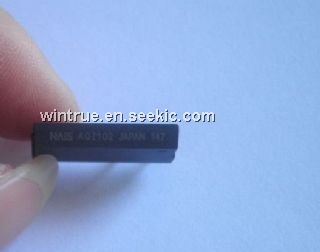

 AQZ102 |
Panasonic Electric Works |
Solid State Relays 4A 60V 4PIN SPST |
Data Sheet |
|
|
||||||||||||
|
AQZ102D |
Panasonic Electric Works |
Solid State Relays PhotoMOS RELAY |
Data Sheet |
|
|
||||||||||||
